Fundamental 22

ImageNet Challenge

이미지넷은 2010년 ILSVRC2010을 시작으로 대량의 이미지 데이터를 포함하는 데이터셋이다. 이미지넷은 1만 개가 넘는 카테고리에 대해 100만 장 규모의 이미지를 가지고 있고 이미지 데이터를 수집할 당시 10억 장의 이미지에서 167개국에서 모인 5만 명의 작업자가 라벨링에 참여하였다.

ImageNet Pretrained Model의 Accurancy

• Top-1 Accuracy: 자신이 예측한 클래스중 확률이 가장 높은 클래스가 정답일 확률
• Top-5 Accuracy: 자신이 예측한 클래스중 확률이 상위 5개 클래스에서 정답일 확률

딥네트워크의 시작

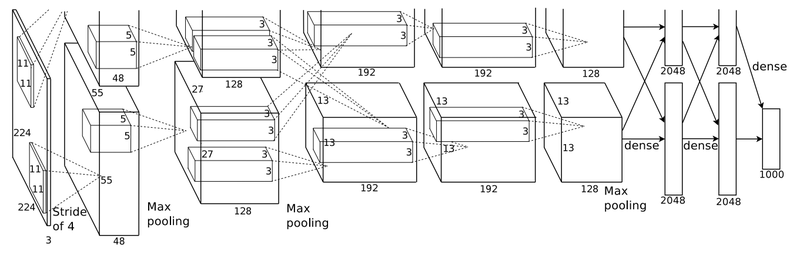

AlexNet

• ReLU활성화 함수
• 드롭아웃
• 오버래핑 풀링
• 7개의 CNN (Pre-training)
• 2개의 FCN

CNN을 잘쓰자

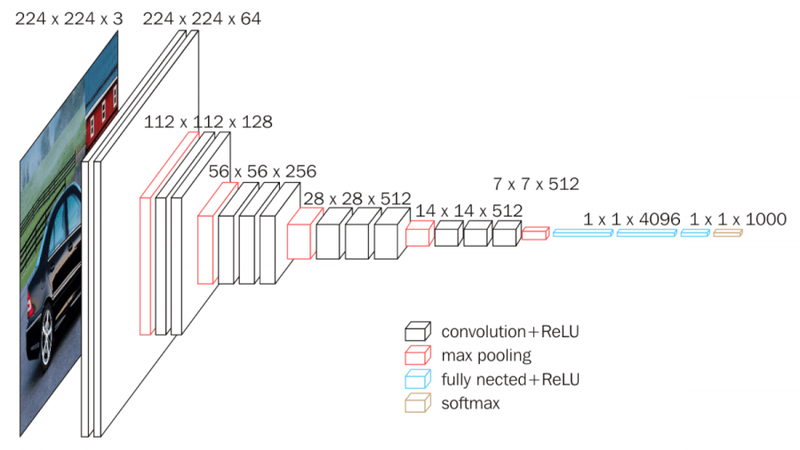

VGG

• 간결한 구조로 많은 활용이 이루어졌다.
• 10개의 CNN을 가지고 총 16개, 19개의 층으로 이뤄진다.
• 3x3의 커널을 사용해서 더 많은 레이어를 쌓고 이미지의 비서형적 특성을 더 잘 잡아낼 수 있게 하였다.

멀리 있으면 잘 안들려요

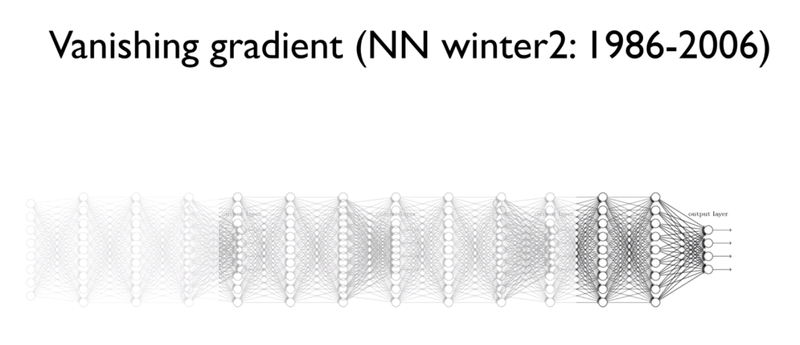

기울기 소실(경사소실, Vanishing Gradient)이란?
네트워크를 깊게 쌓으면 모델의 학습을 위한 Gradient가 사라지는 현상이 발생한다.

• 레이어가 깊어지면서 Gradient가 매우 커지거나 작아진다. 레이어의 가중치가 반복돼서 곱해지면, 1보다 작을 때는 0에 너무 가까워 져버리고, 1보다 클 때에는 그 값이 기하급수적으오 커지게 된다.

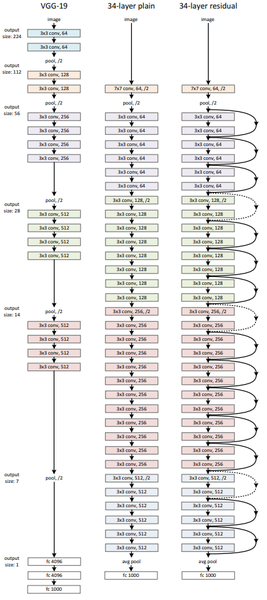

ResNet

• 총 152개 이상의 레이어
• Skip connertion을 활용하여 Vanishing/Exploding Gradient 문제 해결

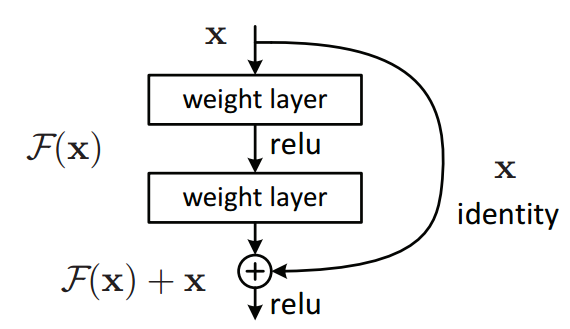

Skip Connection은 위의 그림처럼 레이어의 입력을 다른 곳에 이어서 Gradient가 깊은 곳까지 이어지도록한다.

Model API

초기에는 Tensorflow와 Keras의 포함 관계는 없었다. 이 후 Keras의 창시자인 프랑소아 숄레가 구글에 함류하고, Tensorflow 2.0에 이르러서 Keras를 직접 지원하면서 포함된 형태를 보이게 되었다.

VGG16

데이터 셋 가져오기

import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers

# CIFAR100 데이터셋을 가져옵시다.
cifar100 = keras.datasets.cifar100

(x_train, y_train), (x_test, y_test) = cifar100.load_data()
x_train, x_test = x_train / 255.0, x_test / 255.0

print("x_train:", len(x_train), "x_test:", len(x_test))

기본적인 CNN 모델 구현

img_input = keras.Input(shape=(32, 32, 3))

x = keras.layers.Conv2D(16, 3, activation='relu')(img_input)
x = keras.layers.MaxPool2D((2,2))(x)
x = keras.layers.Conv2D(32, 3, activation='relu')(x)
x = keras.layers.MaxPool2D((2,2))(x)
x = keras.layers.Flatten()(x)
x = keras.layers.Dense(256, activation='relu')(x)
predictions = keras.layers.Dense(100, activation='softmax')(x)

model = keras.Model(inputs=img_input, outputs=predictions)

model.summary()
'''
Model: "model"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         [(None, 32, 32, 3)]       0
_________________________________________________________________
conv2d (Conv2D)              (None, 30, 30, 16)        448
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 15, 15, 16)        0
_________________________________________________________________
conv2d_1 (Conv2D)            (None, 13, 13, 32)        4640
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 6, 6, 32)          0
_________________________________________________________________
flatten (Flatten)            (None, 1152)              0
_________________________________________________________________
dense (Dense)                (None, 256)               295168
_________________________________________________________________
dense_1 (Dense)              (None, 100)               25700
=================================================================
Total params: 325,956
Trainable params: 325,956
Non-trainable params: 0
_________________________________________________________________
'''

VGG16모델 구현

# Block 1
x = layers.Conv2D(64, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block1_conv1')(img_input)
x = layers.Conv2D(64, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block1_conv2')(x)
x = layers.MaxPooling2D((2, 2), strides=(2, 2), name='block1_pool')(x)

# Block 2
x = layers.Conv2D(128, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block2_conv1')(x)
x = layers.Conv2D(128, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block2_conv2')(x)
x = layers.MaxPooling2D((2, 2), strides=(2, 2), name='block2_pool')(x)

# Block 3
x = layers.Conv2D(256, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block3_conv1')(x)
x = layers.Conv2D(256, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block3_conv2')(x)
x = layers.Conv2D(256, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block3_conv3')(x)
x = layers.MaxPooling2D((2, 2), strides=(2, 2), name='block3_pool')(x)

# Block 4
x = layers.Conv2D(512, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block4_conv1')(x)
x = layers.Conv2D(512, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block4_conv2')(x)
x = layers.Conv2D(512, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block4_conv3')(x)
x = layers.MaxPooling2D((2, 2), strides=(2, 2), name='block4_pool')(x)

# Block 5
x = layers.Conv2D(512, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block5_conv1')(x)
x = layers.Conv2D(512, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block5_conv2')(x)
x = layers.Conv2D(512, (3, 3),
                  activation='relu',
                  padding='same',
                  name='block5_conv3')(x)
x = layers.MaxPooling2D((2, 2), strides=(2, 2), name='block5_pool')(x)

# Block 6
x = layers.Flatten(name='flatten')(x)
x = layers.Dense(4096, activation='relu', name='fc1')(x)
x = layers.Dense(4096, activation='relu', name='fc2')(x)

classes=100
x = layers.Dense(classes, activation='softmax', name='predictions')(x)    # CIFAR100을 위한 모델 Output

model = keras.Model(name="VGG-16", inputs=img_input, outputs=x)

model.summary()
'''
Model: "VGG-16"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         [(None, 32, 32, 3)]       0
_________________________________________________________________
block1_conv1 (Conv2D)        (None, 32, 32, 64)        1792
_________________________________________________________________
block1_conv2 (Conv2D)        (None, 32, 32, 64)        36928
_________________________________________________________________
block1_pool (MaxPooling2D)   (None, 16, 16, 64)        0
_________________________________________________________________
block2conv1 (Conv2D)         (None, 16, 16, 128)       73856
_________________________________________________________________
block2conv2 (Conv2D)         (None, 16, 16, 128)       147584
_________________________________________________________________
block2_pool (MaxPooling2D)   (None, 8, 8, 128)         0
_________________________________________________________________
block3conv1 (Conv2D)         (None, 8, 8, 256)         295168
_________________________________________________________________
block3conv2 (Conv2D)         (None, 8, 8, 256)         590080
_________________________________________________________________
block3conv3 (Conv2D)         (None, 8, 8, 256)         590080
_________________________________________________________________
block3pool (MaxPooling2D)    (None, 4, 4, 256)         0
_________________________________________________________________
block4conv1 (Conv2D)         (None, 4, 4, 512)         1180160
_________________________________________________________________
block4conv2 (Conv2D)         (None, 4, 4, 512)         2359808
_________________________________________________________________
block4conv3 (Conv2D)         (None, 4, 4, 512)         2359808
_________________________________________________________________
block4pool (MaxPooling2D)    (None, 2, 2, 512)         0
_________________________________________________________________
block5conv1 (Conv2D)         (None, 2, 2, 512)         2359808
_________________________________________________________________
block5conv2 (Conv2D)         (None, 2, 2, 512)         2359808
_________________________________________________________________
block5conv3 (Conv2D)         (None, 2, 2, 512)         2359808
_________________________________________________________________
block5pool (MaxPooling2D)    (None, 1, 1, 512)         0
_________________________________________________________________
flatten (Flatten)            (None, 512)               0
_________________________________________________________________
fc1 (Dense)                  (None, 4096)              2101248
_________________________________________________________________
fc2 (Dense)                  (None, 4096)              16781312
_________________________________________________________________
predictions (Dense)          (None, 100)               409700
=================================================================
Total params: 34,006,948
Trainable params: 34,006,948
Non-trainable params: 0
_________________________________________________________________
'''

ResNet-50

• 블록마다 feature의 크기가 서로 다르다.

# 추가로 import해야 할 패키지들을 먼저 가져옵니다.
from tensorflow.keras import backend, regularizers, initializers, models

# block 안에 반복적으로 활용되는 L2 regularizer를 선언해 줍니다.
def _gen_l2_regularizer(use_l2_regularizer=True, l2_weight_decay=1e-4):
  return regularizers.l2(l2_weight_decay) if use_l2_regularizer else None

Conv block

def conv_block(input_tensor,
               kernel_size,
               filters,
               stage,
               block,
               strides=(2, 2),
               use_l2_regularizer=True,
               batch_norm_decay=0.9,
               batch_norm_epsilon=1e-5):
  """A block that has a conv layer at shortcut.
  Note that from stage 3,
  the second conv layer at main path is with strides=(2, 2)
  And the shortcut should have strides=(2, 2) as well
  Args:
    input_tensor: input tensor
    kernel_size: default 3, the kernel size of middle conv layer at main path
    filters: list of integers, the filters of 3 conv layer at main path
    stage: integer, current stage label, used for generating layer names
    block: 'a','b'..., current block label, used for generating layer names
    strides: Strides for the second conv layer in the block.
    use_l2_regularizer: whether to use L2 regularizer on Conv layer.
    batch_norm_decay: Moment of batch norm layers.
    batch_norm_epsilon: Epsilon of batch borm layers.
  Returns:
    Output tensor for the block.
  """
  filters1, filters2, filters3 = filters
  if backend.image_data_format() == 'channels_last':
    bn_axis = 3
  else:
    bn_axis = 1
  conv_name_base = 'res' + str(stage) + block + '_branch'
  bn_name_base = 'bn' + str(stage) + block + '_branch'

  x = layers.Conv2D(
      filters1, (1, 1),
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '2a')(
          input_tensor)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '2a')(
          x)
  x = layers.Activation('relu')(x)

  x = layers.Conv2D(
      filters2,
      kernel_size,
      strides=strides,
      padding='same',
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '2b')(
          x)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '2b')(
          x)
  x = layers.Activation('relu')(x)

  x = layers.Conv2D(
      filters3, (1, 1),
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '2c')(
          x)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '2c')(
          x)

  shortcut = layers.Conv2D(
      filters3, (1, 1),
      strides=strides,
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '1')(
          input_tensor)
  shortcut = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '1')(
          shortcut)

    x = layers.add([x, shortcut])
  x = layers.Activation('relu')(x)
  return x

Identity block

def identity_block(input_tensor,
                   kernel_size,
                   filters,
                   stage,
                   block,
                   use_l2_regularizer=True,
                   batch_norm_decay=0.9,
                   batch_norm_epsilon=1e-5):
  """The identity block is the block that has no conv layer at shortcut.
  Args:
    input_tensor: input tensor
    kernel_size: default 3, the kernel size of middle conv layer at main path
    filters: list of integers, the filters of 3 conv layer at main path
    stage: integer, current stage label, used for generating layer names
    block: 'a','b'..., current block label, used for generating layer names
    use_l2_regularizer: whether to use L2 regularizer on Conv layer.
    batch_norm_decay: Moment of batch norm layers.
    batch_norm_epsilon: Epsilon of batch borm layers.
  Returns:
    Output tensor for the block.
  """
  filters1, filters2, filters3 = filters
  if backend.image_data_format() == 'channels_last':
    bn_axis = 3
  else:
    bn_axis = 1
  conv_name_base = 'res' + str(stage) + block + '_branch'
  bn_name_base = 'bn' + str(stage) + block + '_branch'

  x = layers.Conv2D(
      filters1, (1, 1),
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '2a')(
          input_tensor)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '2a')(
          x)
  x = layers.Activation('relu')(x)

  x = layers.Conv2D(
      filters2,
      kernel_size,
      padding='same',
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '2b')(
          x)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '2b')(
          x)
  x = layers.Activation('relu')(x)

  x = layers.Conv2D(
      filters3, (1, 1),
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name=conv_name_base + '2c')(
          x)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name=bn_name_base + '2c')(
          x)

  x = layers.add([x, input_tensor])
  x = layers.Activation('relu')(x)
  return x

ResNet-50

def resnet50(num_classes,
             batch_size=None,
             use_l2_regularizer=True,
             rescale_inputs=False,
             batch_norm_decay=0.9,
             batch_norm_epsilon=1e-5):
  """Instantiates the ResNet50 architecture.
  Args:
    num_classes: `int` number of classes for image classification.
    batch_size: Size of the batches for each step.
    use_l2_regularizer: whether to use L2 regularizer on Conv/Dense layer.
    rescale_inputs: whether to rescale inputs from 0 to 1.
    batch_norm_decay: Moment of batch norm layers.
    batch_norm_epsilon: Epsilon of batch borm layers.
  Returns:
      A Keras model instance.
  """

  input_shape = (32, 32, 3)  # CIFAR100을 위한 input_shape 조정입니다.
  img_input = layers.Input(shape=input_shape, batch_size=batch_size)
  if rescale_inputs:
    # Hub image modules expect inputs in the range [0, 1]. This rescales these
    # inputs to the range expected by the trained model.
    x = layers.Lambda(
        lambda x: x * 255.0 - backend.constant(
            imagenet_preprocessing.CHANNEL_MEANS,
            shape=[1, 1, 3],
            dtype=x.dtype),
        name='rescale')(
            img_input)
  else:
    x = img_input

  if backend.image_data_format() == 'channels_first':
    x = layers.Permute((3, 1, 2))(x)
    bn_axis = 1
  else:  # channels_last
    bn_axis = 3

  block_config = dict(
      use_l2_regularizer=use_l2_regularizer,
      batch_norm_decay=batch_norm_decay,
      batch_norm_epsilon=batch_norm_epsilon)
  x = layers.ZeroPadding2D(padding=(3, 3), name='conv1_pad')(x)
  x = layers.Conv2D(
      64, (7, 7),
      strides=(2, 2),
      padding='valid',
      use_bias=False,
      kernel_initializer='he_normal',
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name='conv1')(
          x)
  x = layers.BatchNormalization(
      axis=bn_axis,
      momentum=batch_norm_decay,
      epsilon=batch_norm_epsilon,
      name='bn_conv1')(
          x)
  x = layers.Activation('relu')(x)
  x = layers.MaxPooling2D((3, 3), strides=(2, 2), padding='same')(x)

  x = conv_block(
      x, 3, [64, 64, 256], stage=2, block='a', strides=(1, 1), **block_config)
  x = identity_block(x, 3, [64, 64, 256], stage=2, block='b', **block_config)
  x = identity_block(x, 3, [64, 64, 256], stage=2, block='c', **block_config)

  x = conv_block(x, 3, [128, 128, 512], stage=3, block='a', **block_config)
  x = identity_block(x, 3, [128, 128, 512], stage=3, block='b', **block_config)
  x = identity_block(x, 3, [128, 128, 512], stage=3, block='c', **block_config)
  x = identity_block(x, 3, [128, 128, 512], stage=3, block='d', **block_config)

  x = conv_block(x, 3, [256, 256, 1024], stage=4, block='a', **block_config)
  x = identity_block(x, 3, [256, 256, 1024], stage=4, block='b', **block_config)
  x = identity_block(x, 3, [256, 256, 1024], stage=4, block='c', **block_config)
  x = identity_block(x, 3, [256, 256, 1024], stage=4, block='d', **block_config)
  x = identity_block(x, 3, [256, 256, 1024], stage=4, block='e', **block_config)
  x = identity_block(x, 3, [256, 256, 1024], stage=4, block='f', **block_config)

  x = conv_block(x, 3, [512, 512, 2048], stage=5, block='a', **block_config)
  x = identity_block(x, 3, [512, 512, 2048], stage=5, block='b', **block_config)
  x = identity_block(x, 3, [512, 512, 2048], stage=5, block='c', **block_config)

  x = layers.GlobalAveragePooling2D()(x)
  x = layers.Dense(
      num_classes,
      kernel_initializer=initializers.RandomNormal(stddev=0.01),
      kernel_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      bias_regularizer=_gen_l2_regularizer(use_l2_regularizer),
      name='fc1000')(
          x)

  # A softmax that is followed by the model loss must be done cannot be done
  # in float16 due to numeric issues. So we pass dtype=float32.
  x = layers.Activation('softmax', dtype='float32')(x)

  # Create model.
  return models.Model(img_input, x, name='resnet50')
